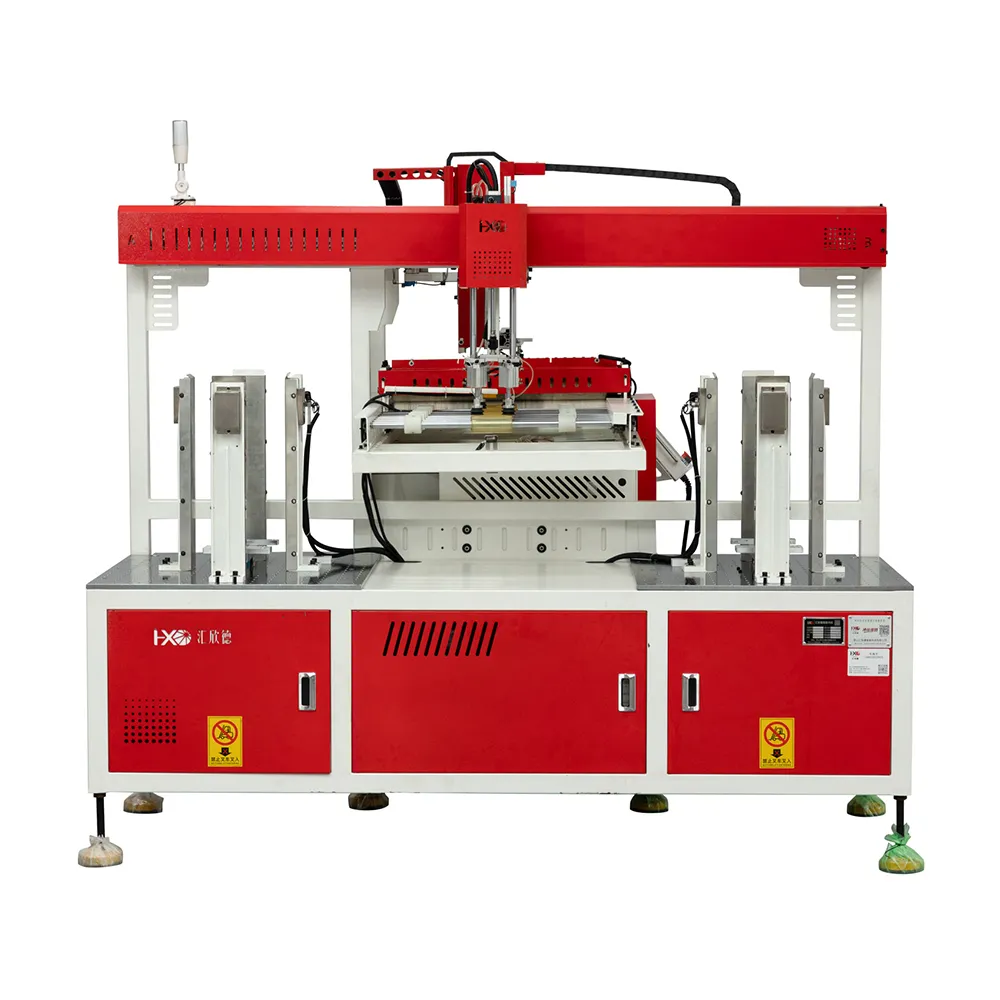

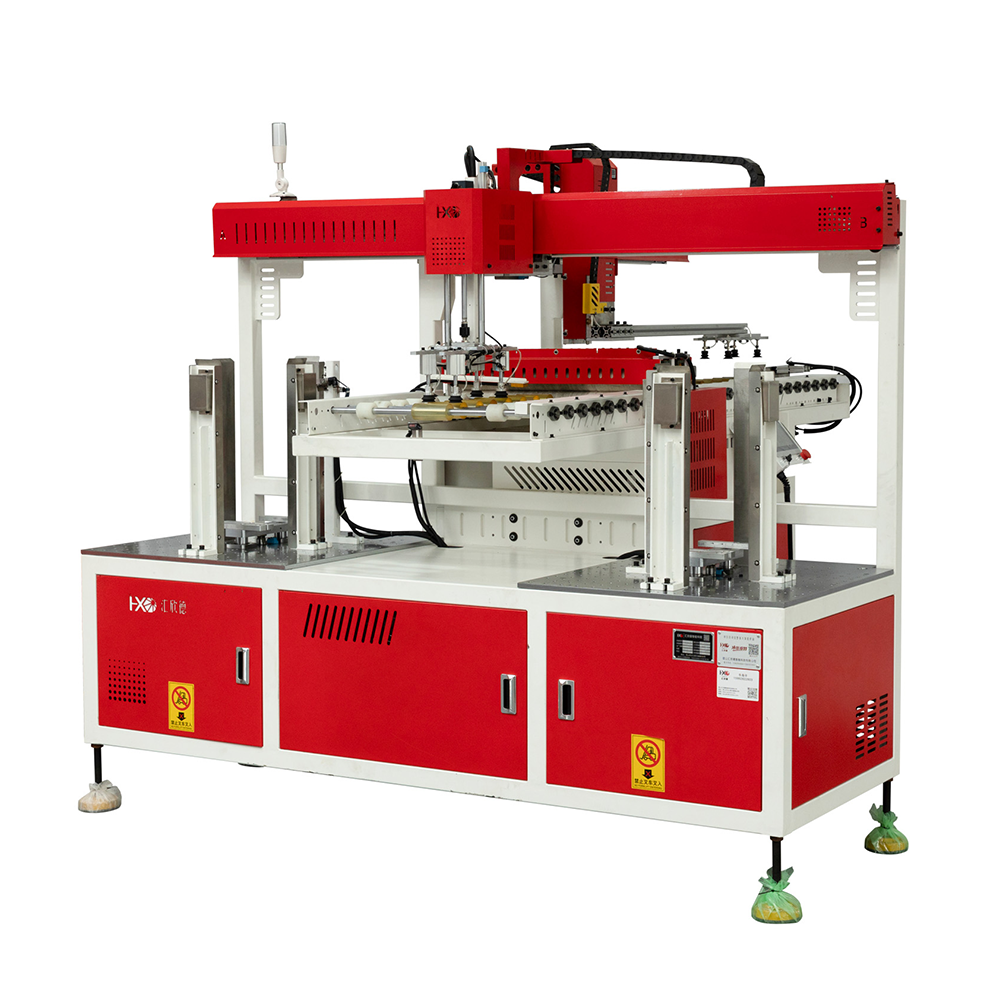

Duplex Oiling And Feeding Rack

Installed Power：3.5KW

Average Power Consumption：0.6KW

Effective Travel Of the Arm Front And Back：1200mm

Start Order Request WhatsApp

-Instantaneous switching of AB bins, changing bins without stopping the line.

-Applicable to square/round material sheet (customized bins/alignment table are available upon request).

-Single bin/double bin/four bin/six bin standardized automatic material racks, effectively solving the problem of continuous loading in the production process.

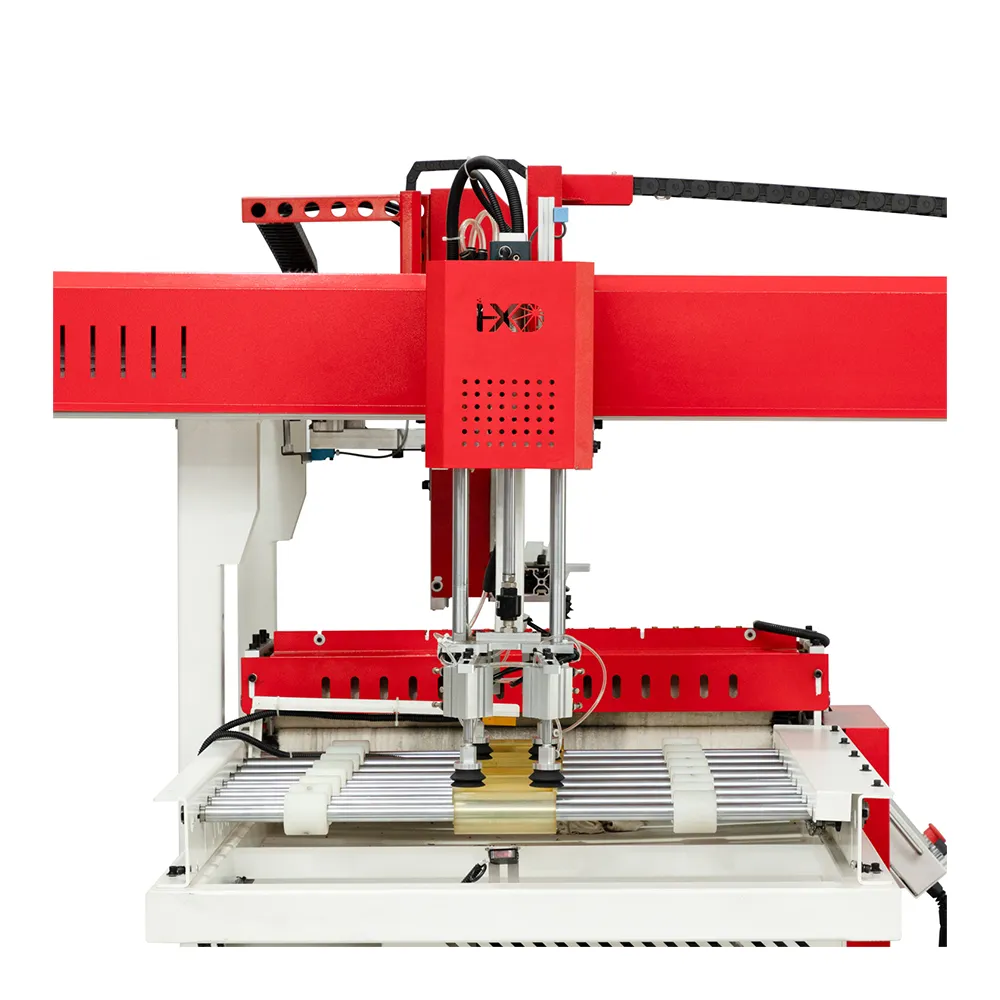

Equipped with loading arm (limited to “direct-entry” models), which can directly feed the positioned material pieces into the press molds.

-Adopting servo motor with precision planetary reducer, high speed and smooth feeding, fast and accurate positioning. -With automatic separation of stacked materials, double material alarm and automatic correction function.

-Adopting hydraulic lifting system to hold the material, which can carry heavier material and is stable and reliable.

-PLC automatic controller can accurately control the rising height of the silo to ensure that the material surface is always at the same height.

-With stacked material separation function: according to the material characteristics of the choice of magnetic separation, scraping tooth separation, blowing separation and other configurations.

With double-sheet detection function: equipped with double-sheet detection controller to ensure that each time the material is taken for a single sheet effect.

-With automatic calibration function: the calibration device can calibrate the position of the material sheet to ensure that the material sheet taken by the robot is in the same position.

-Optional oil spraying, oil rolling and oiling device can be installed according to requirements. Through the PLC automatic controller to accurately control the amount of oil discharged, to ensure that the surface of the sheet of material oil coverage, effectively save resources, reduce costs, and protect the environment.

"Enhancing Production Efficiency: The Role of Duplex Oiling And Feeding Racks in Streamlining Manufacturing Processes"

In the pursuit of operational excellence, manufacturers are constantly seeking innovative solutions to enhance production efficiency. The Duplex Oiling And Feeding Rack plays a pivotal role in this endeavor, offering a robust and integrated approach to material handling and processing. Here's how this system can streamline your manufacturing processes:

Optimizing Material Flow

The Duplex Oiling And Feeding Rack is designed to optimize the flow of materials through the production line. By providing a dual-station setup, it allows for continuous operation, reducing downtime and increasing throughput. This seamless material flow is crucial for maintaining high production rates.

Precision Oiling

The integrated oiling function ensures that components are lubricated consistently and accurately. This precision not only extends the life of machinery but also improves the quality of the finished product by reducing friction and wear.

Efficient Part Handling

With its automated feeding capabilities, the rack minimizes the need for manual intervention, which can be time-consuming and prone to errors. The system's ability to handle a variety of parts makes it versatile and adaptable to different manufacturing scenarios.

Enhanced Workspace Organization

The structured design of the Duplex Oiling And Feeding Rack helps in organizing the workspace, leading to a cleaner and safer environment. This organization contributes to a more efficient use of space and can improve worker morale and productivity.

Reduced Maintenance and Downtime

The robust construction of the rack ensures durability and reliability, reducing the frequency of maintenance and the associated downtime. This reliability is a cornerstone of maintaining consistent production levels.

Customization for Specific Needs

Our Duplex Oiling And Feeding Racks are customizable to fit the unique requirements of your production line. Whether it's the size of the parts, the type of lubrication needed, or the integration with existing systems, we tailor our solutions to meet your specific needs.

In conclusion, the Duplex Oiling And Feeding Rack is not just a piece of equipment; it's a strategic investment in the future of your manufacturing operation. By enhancing production efficiency, it can lead to significant cost savings and a competitive edge in the marketplace.

Model (double bin)	HXD-S-TS-440	HXD-S-TS-660	HXD-S-TS-880
Rectangular and Round Chips / Customized Shaped Chips	MAX:400400 MIN:150150	MAX:600600 MIN:200200	MAX:800800 MIN:300300
Power Supply	220V±50Hz
Installed Power	3.5KW
Average Power Consumption	0.6KW
Effective Travel Of the Arm Front And Back	1200mm
Effective Arm Travel Up And Down	300mm
Minimum Discharge Height	1000mm
Double Sheet Inspection	Black Diamond
Anticipatory Approach	Frequency Inverter + Lifting Screw
Split Sheet Method	Standard Magnetic Tensioner

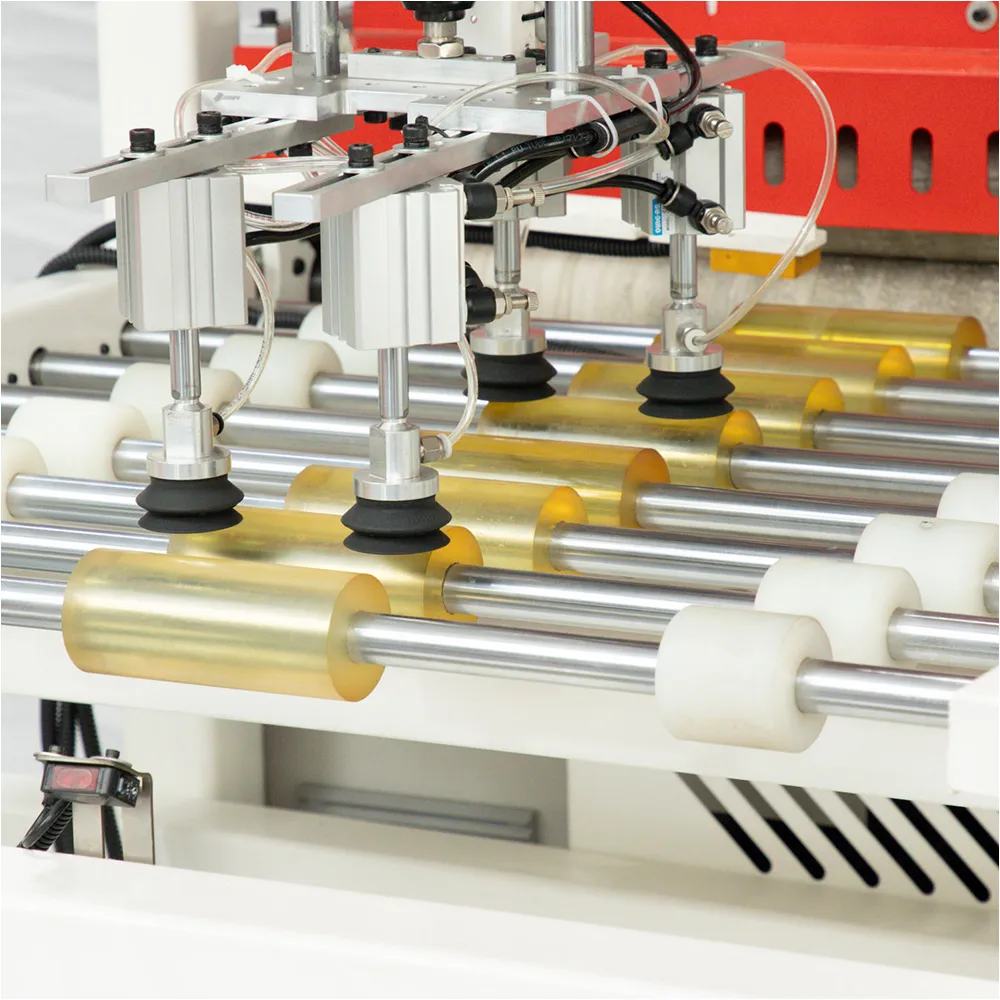

Conveying Methods	Stainless Steel Rollers (customized for overmolding, customized for timing belt conveyor)
Grease Roller	Customized Cotton Cloth Wheels
Lubrication Control Method	Notation Output

Question: How does the Duplex Oiling And Feeding Rack improve production efficiency in our facility?

Answer: The Duplex Oiling And Feeding Rack streamlines your production process by automating part handling and lubrication, reducing manual intervention, and ensuring a continuous flow of materials. This results in decreased downtime and increased throughput, enhancing overall efficiency.

Question: Can the rack be customized to fit our specific part sizes and production needs?

Answer: Absolutely. Our racks are designed with flexibility in mind. We offer customization options to accommodate various part sizes and production requirements, ensuring a seamless integration with your existing processes.

Question: What materials are the racks made from, and what is their expected lifespan?

Answer: Our Duplex Oiling And Feeding Racks are constructed from high-quality, durable materials such as stainless steel and aluminum, which are known for their longevity. With proper maintenance, our racks can operate reliably for many years.
